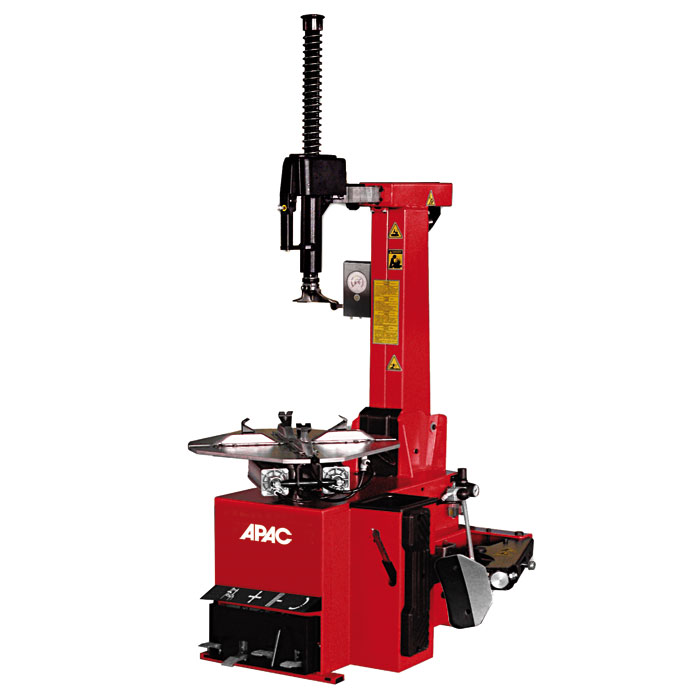

Automatic Tyre Changer: 1672T14


  • Double speed turntable (6-12 rpm)
  • Mounting lever with plastic protection for alloy rims
  • Lubricator + filter regulator assy
  • Set of alloy rims protection
  • Ring bracket and grease pot
  • Bead breaker with plastic protection for alloy rims
  • Pressure limiting valve max 3,5 Bar (50 PSI)
  • INFLATOR tyres inflation system.

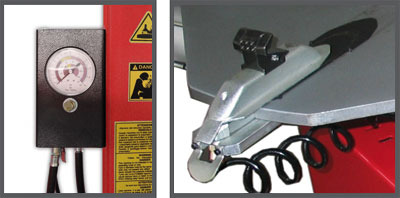

  • Pedal inflator for the beading in. The air outlet takes place from the slide guides.
  • Octagonal self-centering turntable

OPTIONAL

  • U2360151 Quick re-tooling kit
  • 1672TSIST Assistant H Titanium
  • U2360152 Motorcycle adapter kit X4
  • U2360675 Wheel lift
  • Single-phase motor (single speed)


Technical data 1672T14
Rim clamping from outside 11" - 22"
Inside Max. wheel diameter 13" - 24"
Max. wheel diameter 1000 mm
Max. wheel width 350 mm
Bead-breaking cylinder force 30200 N (3080 Kg)
Operating pressure 8 - 10 bar
Power supply 400V 50 Hz - 3 ph * Optional 230 50 Hz - 3 ph
Motor power 0,8 - 1,1 kW
Noise 70 dB(A) /1mt
Weight 279 Kg
Dimension 1280 x 1750 x 1970

The manufacturing Company reserves the right to make modifications to its machines at any time without notice.

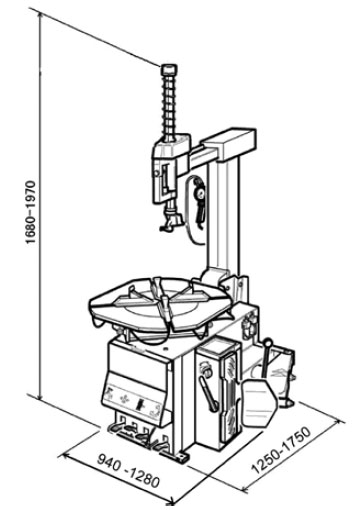

zoom TECHNICAL DRAW: 1672T14

1672T14
